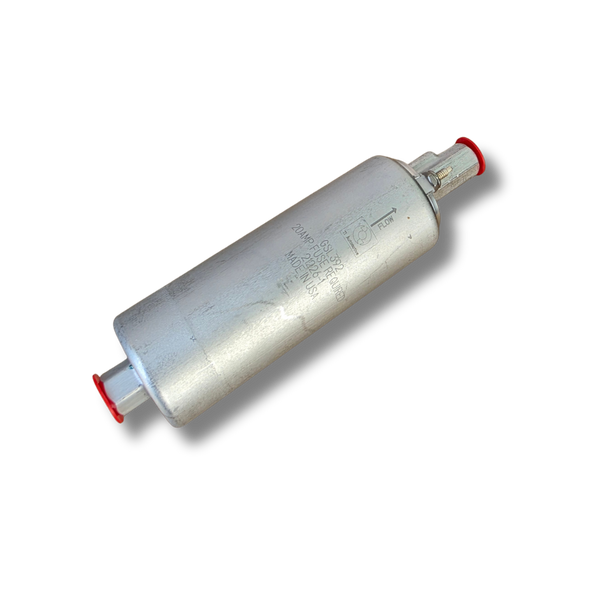

FUEL PUMP ASSEMBLY - WALBRO GSL392

The genuine Walbro fuel pump is the perfect fuel pump for your micro sprint 600 no matter what injection system you are running.

FEATURES

• Flow rate: 255 LPH

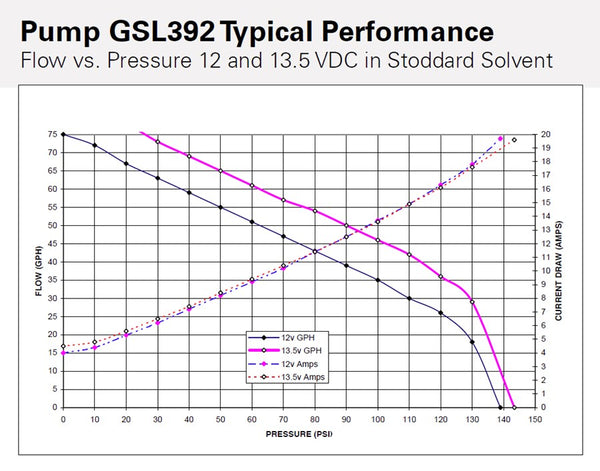

• Flow: See chart in images for flow v's pressure
• Fitting threads: M10x1mm
• Compact and lightweight design
• Current draw shown on chart in the images

OPTIONS

• Chassis clamp of various sizes
• Inlet / Outlet fittings. M10 x 1 thread


CONTENTS

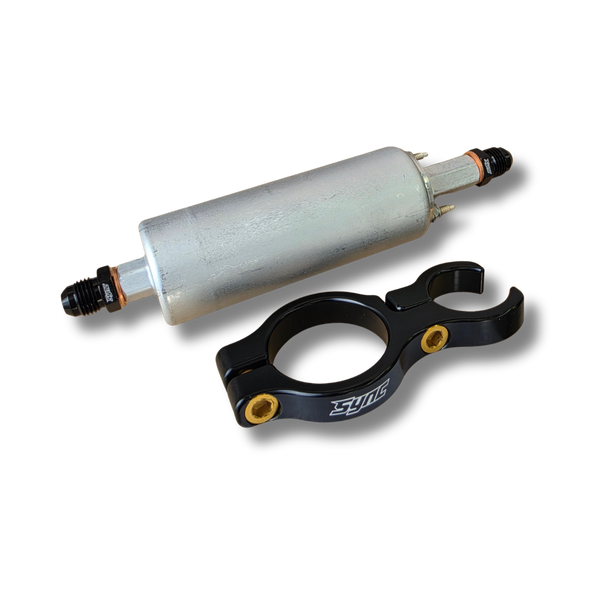

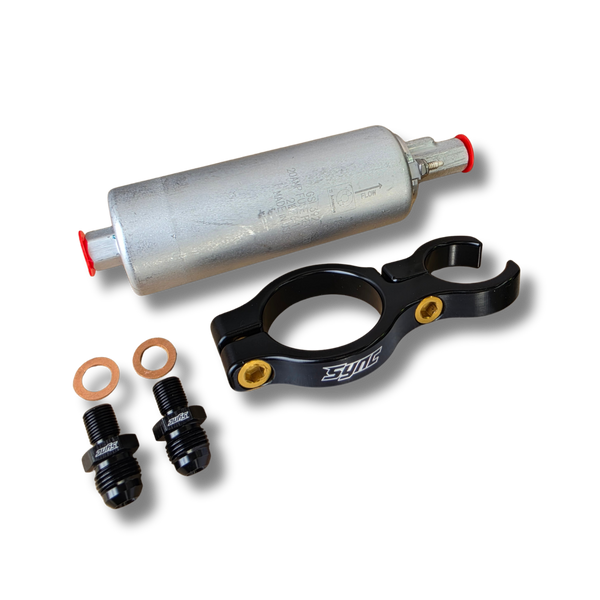

• Fuel pump
• If fittings chosen you receive 2x M10x1 to AN6 fittings and sealing washers
• Clamp comes complete with 2 pieces and2x Titanium bolts in chosen size

INSTALLATION NOTES

• 30 micron filter: Between fuel pump and fuel rail
• 100 micron filter: Between fuel tank and pump

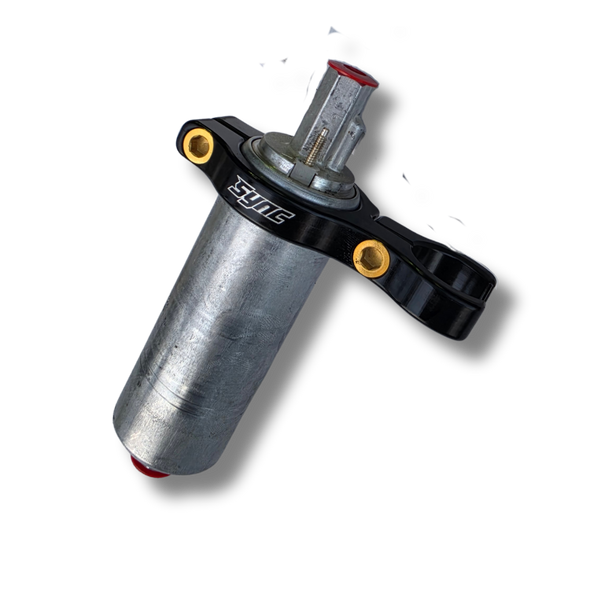

• When clamping to a chassis clamp, clamp around the end of the pump as shown to ensure no damage.
