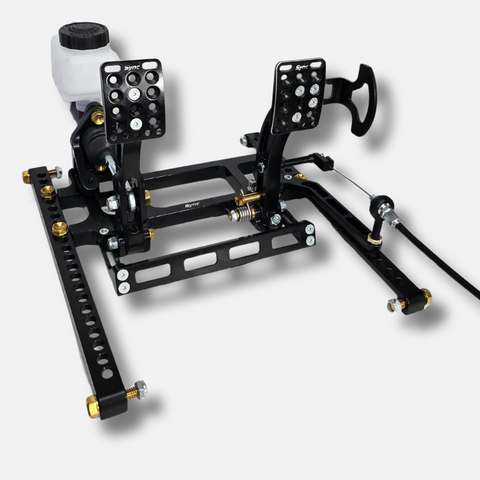

The perfect pedal system for your Micro Sprint 600!

Fits any brand of car, any driver and has the fastest and easiest adjustment system. Perfect for those Junior drivers that are still growing!

Crafted from Aerospace grade 6061-T6 Aluminium
Black anodized finish
Easy access adjustment of pedals forward and back. Under 1 minute!
Designed to use the best Micro 600 master cylinder on the market. The Willwood 5/8".
Throttle cable orientated to the rear of the car to
- Minimize the cable interfering with axles and other components.
- Minimize dirt entering the cable
- Reduction of components and potential causes of issues at the track
Pedals
- Maintainence free bearings used for rotation on both pedals.
- Custom Titanium pins for both pedals to ensure perfect fit.
- 'Zero play' ultra smooth double shear mounting. Pedals have no movement side to side.
- Adjustable throttle pedal throw design with three options via moving the pedal rod up and down to slow or speed up the throttle response.
- Pedals come complete with side to side pedal stops for both brakes and throttle pedals. These can be adjusted up and down and from each side.
Brakes
- Ultra strong master cylinder mounting design. Designed to not have screws in shear.
- Strong double shear attachment of master cylinder to the brake pedal
- Adjustable brake pedal throw
Custom fit titanium pins and bolts as standard on
- Both pedal pins
- Throttle pedal spring retainment spring
- Master cylinder to brake mounting pin
- Option for titanium for rail mounting and master cylinder moutning titanium bolts.

Safety
- Not using go kart style pedals to ensure that when in a front impact your feet do not jump forward. They can go against the stem of the pedals.
- Heel stop as standard for same above reason. The ball of your foot will not be thrown around during a crash.
- Both above features signifcantly reducing your chance of broken ankles in a crash!

Adjustable pedal assembly in desired width
2x Adjuster rails
2x side to side foot stops
1x Adjustable pedal stop
All fasteners to mount pedals to chassis
4x tabs to weld to your car if it doesn't fit your current tabs.
Rail to pedal main frame bolts 4x
Options

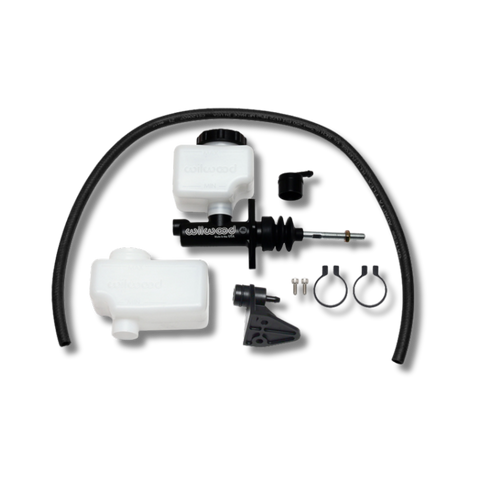

- Master cylinder and AN3 brake fitting either right angled or tee.
- Titanium fastener upgrade
