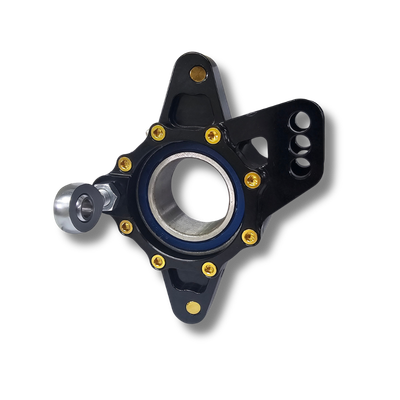

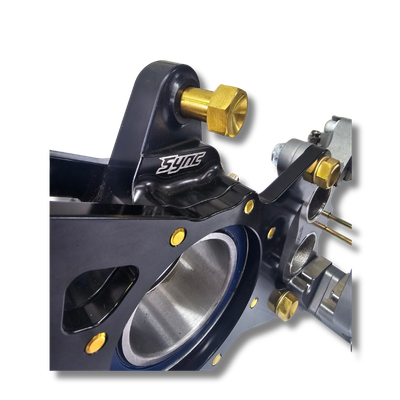

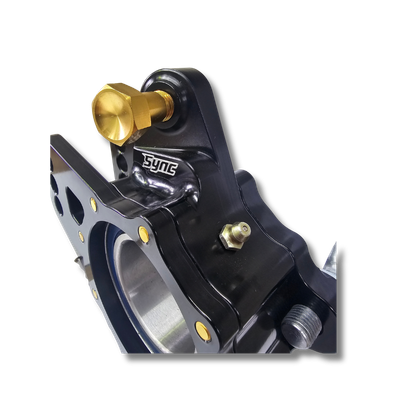

BEARING CARRIER ASSEMBLY RIGHT HAND - HYPER STYLE JACOBS

Micro Sprint 600 bearing carrier assembly to suit your Hyper or TJ chassis in the 'long' wheelbase configeration with a 1-3/4" axle for a right side jacobs ladder.

FEATURES

• Anodized Black Aeropsace 7075 T6 Aluminium componants with machined highlights and pockets.
• Backwards compatible with Hyper/TJ chassis

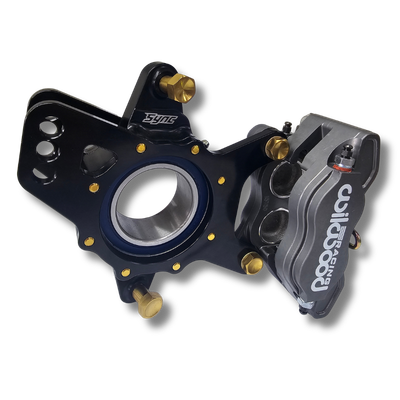

• Can be used with either no brake or a GP420 4 piston brake caliper.
• The reason a 2 piston brake caliper is not offered is that the caliper gets to close to the right rear wheel to ensure correct offset.

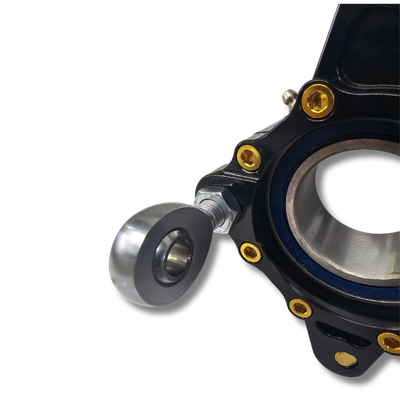

• The rod end used for the jacobs ladder is a 3/8" hole, 7/16" shank chromoly rod end

STANDARD INCLUSIONS

• Bearing carrier

• New bearing
• Grease nipple
• 2x Bearing carrier plates. [Style dependant on caliper being used]
• Zinc plated steel or titanium bearing carrier bolts and washers
• If getting a bearing carrier assembly complete with a caliper it comes with the required fasteners to mount to the plate and new pads
• The fasteners for the caliper match the wishbone bolts. EG if titanium wishbone bolts the caliper is the same.
