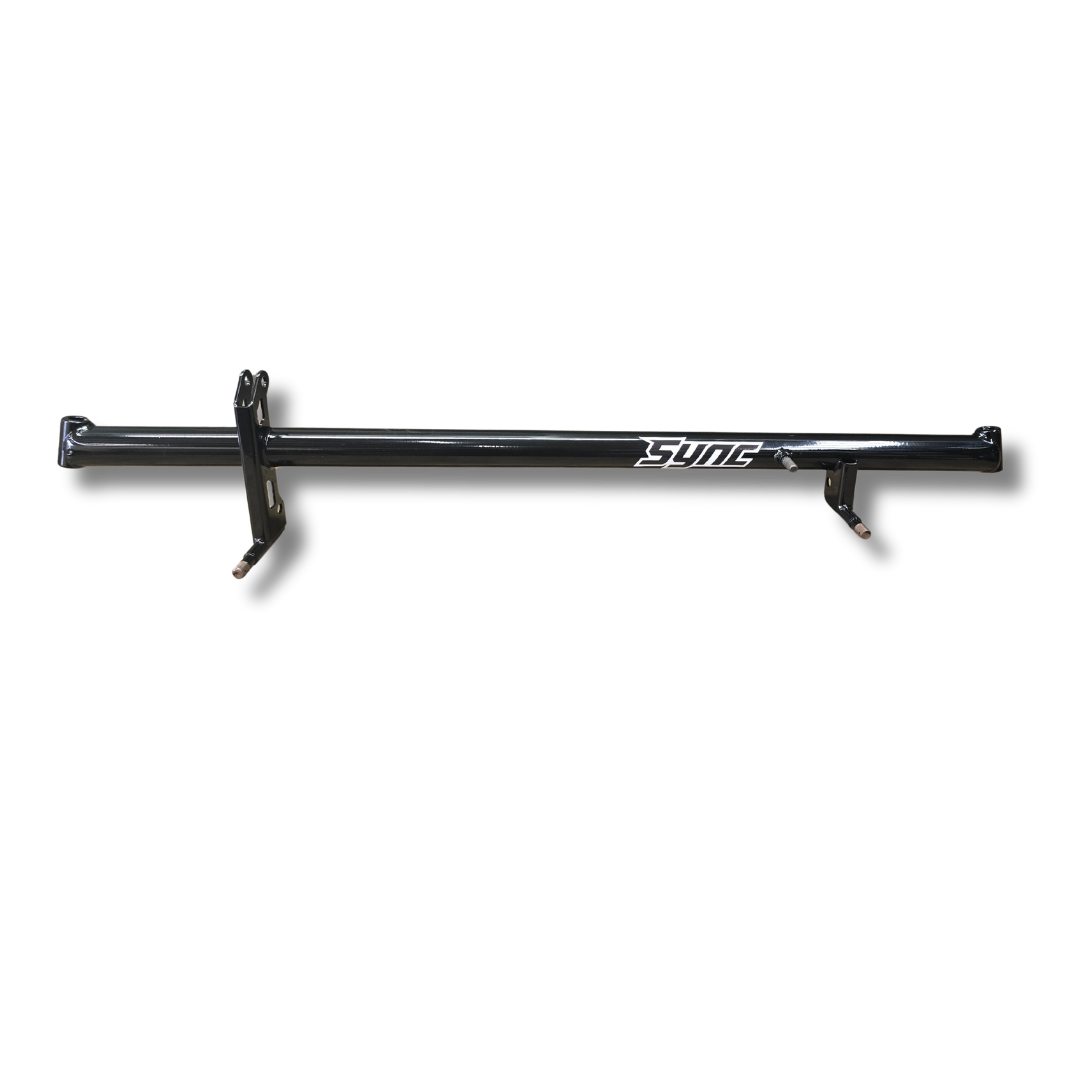

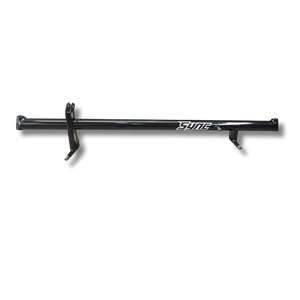

This front axle suits a variety of different bradn chassis.
FEATURES
USA sourced 4130 chromoly tube 1-3/4" in diameter
Tig welded
Precision CNC machined shock pins and king pin bosses
Precision laser cut tabs for radius rod pick-ups
2.08" x 5/8" King Pin bosses standard for all major micro sprint brand spindles
Gloss black powdercoated finish
Quick change threaded shock studs.
7/16" rod end bolt holes.
10 degree caster layback
Axle width options (measured between center to centre of kingpin at the top)
Winged 40.5"
Wingless 42"
BACKWARDS COMPATIBILITY
Hyper and similar chassis with Torsion bar front ends. The only difference being the height of the shock pick-up locations. This would need to be reviewed during assembly.
